EMBRACE THE STORM
World’s first fully transformable metal detector series!
As your skills increase, transform your VX5 to a VX7 or VX9 with paid software upgrades.
This upgradeable metal detector platform supports a growing range of advanced features to match your experience level and terrain. The Vortex series is an innovative and highly-performing underwater metal detector designed for all-terrain use, including scuba diving and shallow water detection. Its advanced technology ensures reliable performance in various conditions, such as saltwater beaches and underwater terrains. Enhance your metal-detecting experience with the ultimate waterproof metal detector for detecting precious metals, hidden coins, and other metal treasures.

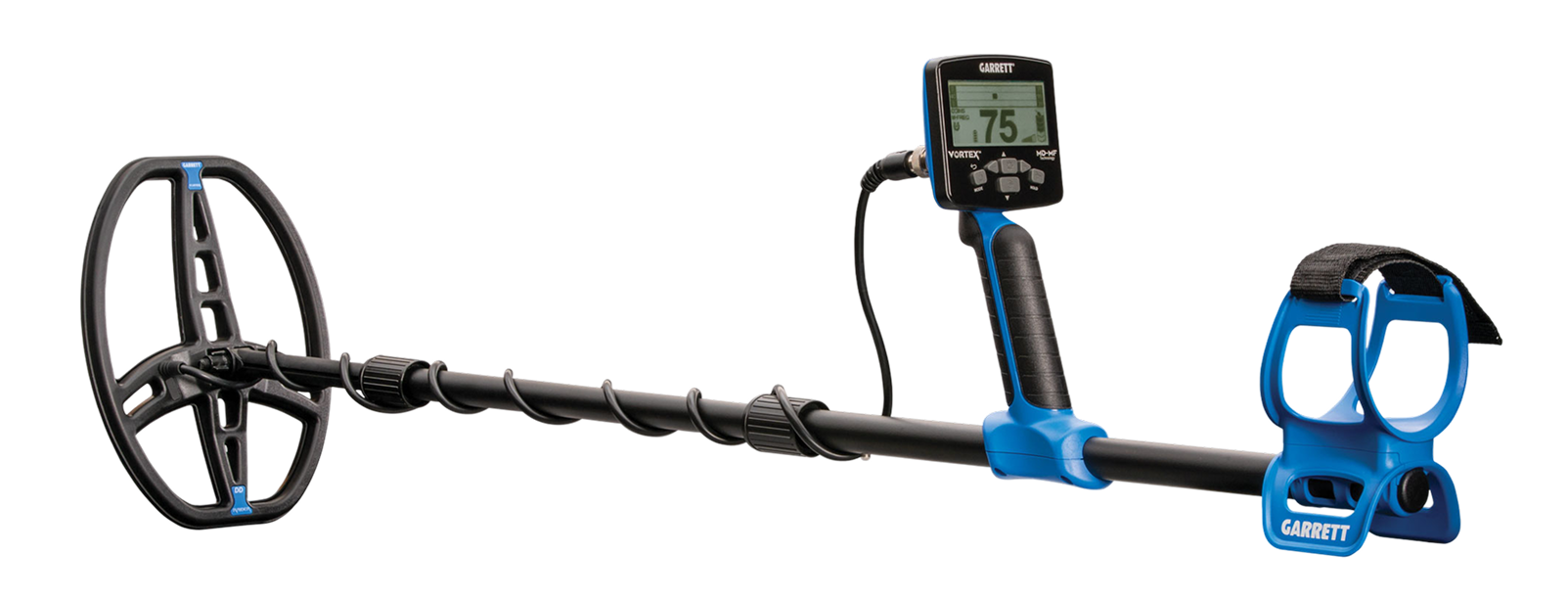

VORTEX SERIES METAL DETECTOR
Garrett Vortex VX5
The entry Vortex model. Loaded with features and provides fast, fixed recovery speed on adjacent targets. Submersible to 16 feet (5 meters). Single and multi-frequency options.
Garrett Vortex VX7
The intermediate Vortex model. Offers 2-tiered MD-MF Target ID display, Multi-Salt multi-frequency for saltwater hunting, increased power, built-in wireless operation, and five search modes. Submersible to 16 feet (5 meters).
Garrett Vortex VX9
The professional Vortex model. Offers 3-tiered MD-MF Target ID display, enhanced recovery speed, increased power, and additional detection modes. Submersible to 16 feet (5 meters).
MD-MF TECHNOLOGY

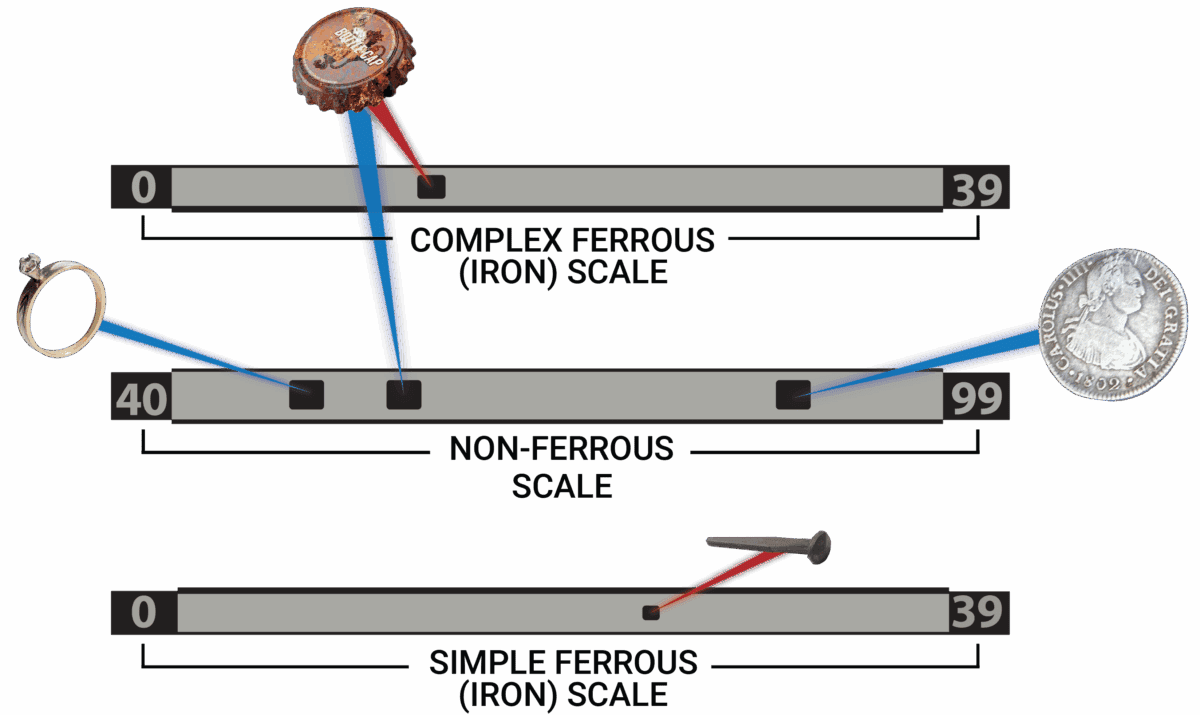

Garrett’s Multi-Dimensional Multi-Frequency (MD-MF) Technology provides deeper and more accurate target analysis and identification. This advanced technology detects and analyzes targets using simultaneous multiple frequencies, as well as multiple dimensions of conductivity and ferrous (iron) content.
The MD-MF Technology is integrated into all three Vortex models, with the most advanced analysis on the VX9’s multi-axis Target ID display. Ideal for metal detecting in various environments, this technology offers precise identification and improved detection depth.
MD-MF TECHNOLOGY EXPLAINED
The world’s first fully upgradeable underwater metal detector series! As your skills increase, you can transform your VX5 to a VX7 or VX9 with paid software upgrades. Each Vortex model upgrade includes additional operating frequencies, more advanced features, and more power to enhance your treasure-hunting experience!
THIN COINS MODE
(VX9 only)
Designed for precision treasure hunting, this specialized detection mode is optimized for locating small, thin coins like hammered
silver and tiny ancient gold coins. The gold detector ensures accurate detection with enhanced sensitivity settings, allowing users to
pinpoint low-conductivity targets with ease.
- Faster recovery speed.
- Enhanced Response on select Target ID range.
- Target Response reduced for common famous items and high-tone targets.
VORTEX BASICS
PRODUCT HIGHLIGHTS
EXPLORE VORTEX
FIRST FIND
Ancient gold coin discovered with the Vortex VX9
Vortex Series Comparison Chart
| VORTEX VX5 | VORTEX VX7 | VORTEX VX9 | |
|---|---|---|---|
| MD-MF Target ID Scale | One Target ID Scale (0-99) | 2-tier Target ID Scales | 3-tier Target ID Scales |
| Frequencies | 13 khz, Multi-Freq. | 5, 13 kHz, Multi-Freq., Multi Salt | 5, 9, 13, 18, 25 kHz, Multi-Freq., Multi-Salt |
| Search Modes | Zero, Standard, USA Coins, Custom | Zero, Standard, USA Coins, Beach, Custom | Zero, Standard, USA Coins, Thin Coins, Beach, Custom, Fast |
| Bottlecap Reject (MF function) | Fixed | Yes – 4 Settings | Yes – 6 Settings |
| Iron Boundary (MF function) | Fixed | Yes – 4 Settings | Yes – 6 Settings |
| Notch Discrimination | Yes | Yes | Yes |
| High-Resolution Iron Discrimination | Yes | Yes | Yes |
| Sensitivity settings | 8 | 8 | 8 |
| Variable Recovery Speed | Fixed | Yes – 2 Settings | Yes – 3 Settings |
| Z-Lynk Wireless | Yes | Yes | Yes |
| Channel (EMI Reduction) | Yes | Yes | Yes |
| Increased sensitivity/depth | N/A | Yes | Yes |
| Auto Ground Balance | Yes | Yes | Yes |
| Number of Tones | 3 | 3,5 | 2,3,5 |
| Volume Control | Yes | Yes | Yes |
| Iron Audio | Yes | Yes | Yes |
| Iron Volume | Yes | Yes | Yes |
| Button Lock (Dive Mode) | Yes | Yes | Yes |
| Pinpoint | Yes | Yes | Yes |
| LCD Backlight | Yes | Yes | Yes |
| Battery Condition Indicator | Yes | Yes | Yes |
| Length (Adjustable) | 24.75″ to 56.75″ (62.86 cm – 144.14 cm) | 24.75″ to 56.75″ (62.86 cm – 144.14 cm) | 24.75″ to 56.75″ (62.86 cm – 144.14 cm) |
| Total Weight (with 8.5″ x 11″ coil) | 3 lbs (1.38 kgs) | 3 lbs (1.38 kgs) | 3 lbs (1.38 kgs) |
| Fully Waterproof to | 16 ft (5m) | 16 ft (5m) | 16 ft (5m) |
| Warranty | 3 Years, Limited Parts/Labor | 3 Years, Limited Parts/Labor | 3 Years, Limited Parts/Labor |
VORTEX ACCESSORIES
Garrett Vortex Submersible Headphones – ⅛-inch jack
Robust underwater headphones designed to work specifically with Vortex series detectors. ?-inch jack
Garrett ClearSound Easy Stow Headphones – ⅛-inch jack
Portable, affordable quality headphones with ?-inch jack.
Garrett MS-3 Z-Lynk Wireless Headphones
Premium sound quality with wireless freedom. Comfortable full-ear cushions.
Garrett Vortex 6″ x 11″ DD Viper Searchcoil
This narrow DD-format coil provides excellent maneuverability, target separation, and depth.
Garrett Vortex 14″ x 11″ DD Reaper searchcoil
This large size DD-format coil is designed for deeper detection depth and for covering more terrain with each sweep of the coil.
LATEST UPDATES AND UPGRADES
VORTEX VX7 to VX9 Firmware Upgrade
- More Sensitivity/Deeper Detection than VX7
- Additional Recovery Speed controls
- Thin Coins Mode (for hammered coins, gold coins)
- Fast Mode (for competition hunts and trashy sites)
- Beach Mode
- Additional single frequency choices
- 3-tiered Target Legend display, with two distinct ferrous (iron) scales
- Ferrous controls (Bottlecap Reject, Iron Boundary)
- Other minor enhancements
VORTEX VX5 to VX9 Firmware Upgrade
- More Sensitivity/Deeper Detection than VX7
- Additional Recovery Speed controls
- Thin Codes Mode (for hammered coins, gold coins)
- Fast Mode (for competition hunts and trashy sites)
- Beach Mode and Multi-Salt Multi-Frequency
- Additional single frequency choices
- 3-tiered Target Legend display, with two distinct ferrous (iron) scales
- Ferrous controls (Bottlecap Reject, Iron Boundary)
- Choice of audio tones
- Other minor enhancements
VORTEX VX5 to VX7 Firmware Upgrade
- More Sensitivity/Deeper Detection than VX5
- Multi-Salt Multi-Frequency
- 2-tiered Ferrous/Non-Ferrous Target legends
- Recovery Speed control
- Bottlecap Reject control
- Beach Mode
- Additional single frequency choice
- Number of Tones control
- Other minor enhancements
Vortex VX7 Firmware Update 7.04
Released 9/4/25. Includes improvements to reaction speed, iron filters, and increased detection depth.
Vortex VX9 Firmware Update 9.11
Released 9/4/25. Includes improvements to reaction speed, iron filters, and increased detection depth.
Vortex VX5 Firmware Update 5.04
Released 9/4/25. Includes improvements to reaction speed, iron filters, and increased detection depth.
